Wifi Adapter Set up for Rasperry Pi

For connecting Raspberry Pi with internet, we have three options, one is through LAN cable, another is using a supported internet dongle and the other way is to using a wifi adapter. Here explaining about the steps that I did for configuring a Netgear N150 WNA1000MV2 wifi adapter with Raspberry pi. Raspberry pi supports lot of wifi adapters. The list of the hardware supported by raspberry pi is available in this url. I had one Netgear Wifi adapter (N150 WNA1000M) and it was working fine without any config changes. Because of that reason, I bought another wifi adapter with the same model number from an online shopping site. But when I unpacked it, I realized that they upgraded the product and a new version of the same product came with model number WNA1000MV2. When I connected it with the pi, it was not working. My raspberry pi OS was Raspbian.

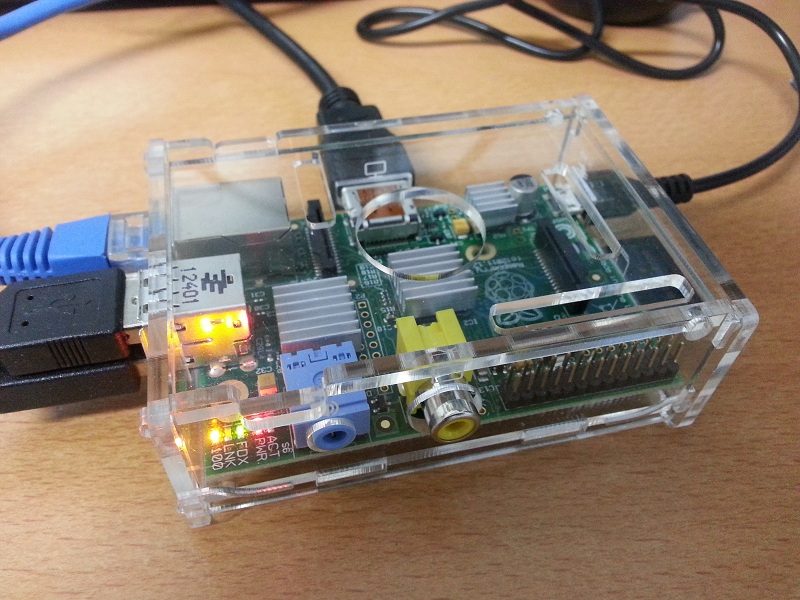

Raspberry-Pi

Netgear1

A portion of the output of dmesg command that contains the details of the wifi adapter is shown below.


dmesg

[ 3.401856] usb 1-1.2: new high-speed USB device number 4 using dwc_otg
[ 3.523552] usb 1-1.2: New USB device found, idVendor=0846, idProduct=9043
[ 3.532493] usb 1-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 3.541771] usb 1-1.2: Product: WNA1000Mv2
[ 3.547744] usb 1-1.2: Manufacturer: Realtek
[ 3.553858] usb 1-1.2: SerialNumber: 00e04c000001

To make this working, we have to do some modifications.
Add the following contents to the /etc/rc.local file

modprobe 8192cu
echo "0846 9043" > /sys/bus/usb/drivers/rtl8192cu/new_id
ifdown wlan0
ifup wlan0

Then add the following contents to /etc/modprobe.d/netgear_n150.conf file

install 8192cu /sbin/modprobe --ignore-install 8192cu; echo "0846 9043" > /sys/bus/usb/drivers/rtl8192cu/new_id

This worked perfectly for me. Hope this will help..!!!

Advertisements

About amalgjose
I am an Electrical Engineer by qualification, now I am working as a Software Engineer. I am very much interested in Electrical, Electronics, Mechanical and now in Software fields. I like exploring things in these fields. I like travelling, long drives and very much addicted to music.

5 Responses to Wifi Adapter Set up for Rasperry Pi

  1. Venkatesh says:

    THanks for this. The light on the dongle isn’t lighting up at all.

  2. josefx says:

    Thank you for this helpful lines – I thought the thing was broken.
    But now it works fine !

  3. manucabello says:

    hi! thank you very much for this. Sorry for my english, i’m spanish. i don’t know where add the code in the rc.local file, can you help me? thanks again.

  4. sen han says:

    Thanks a lot!That solved my problem.

    Could you please tell why that could work? It seems a little wierd didn’t it?
